Heavy Duty Gantry Frame For Electronic Screens On Highways

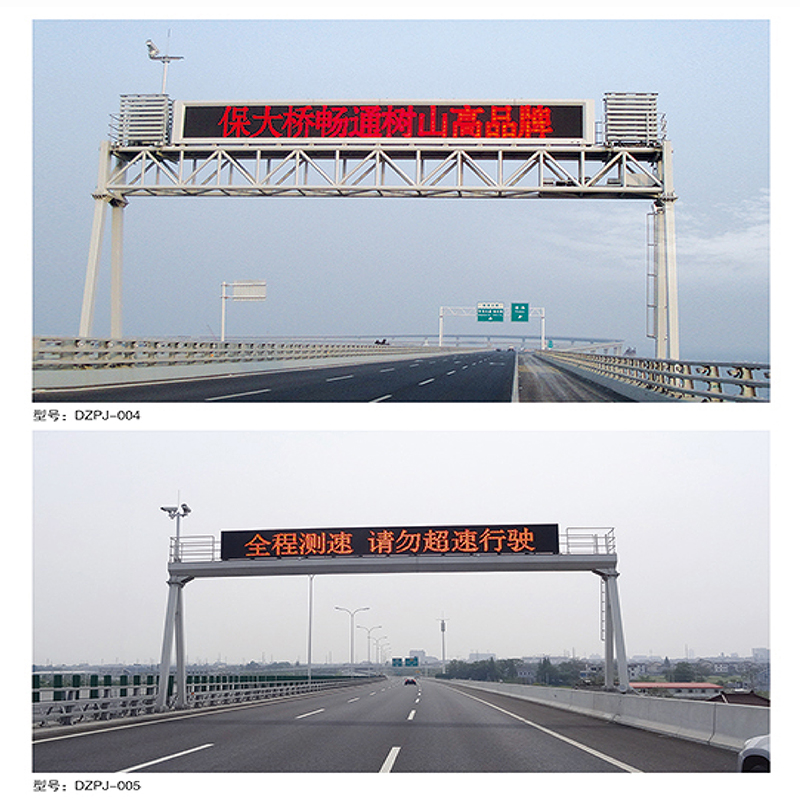

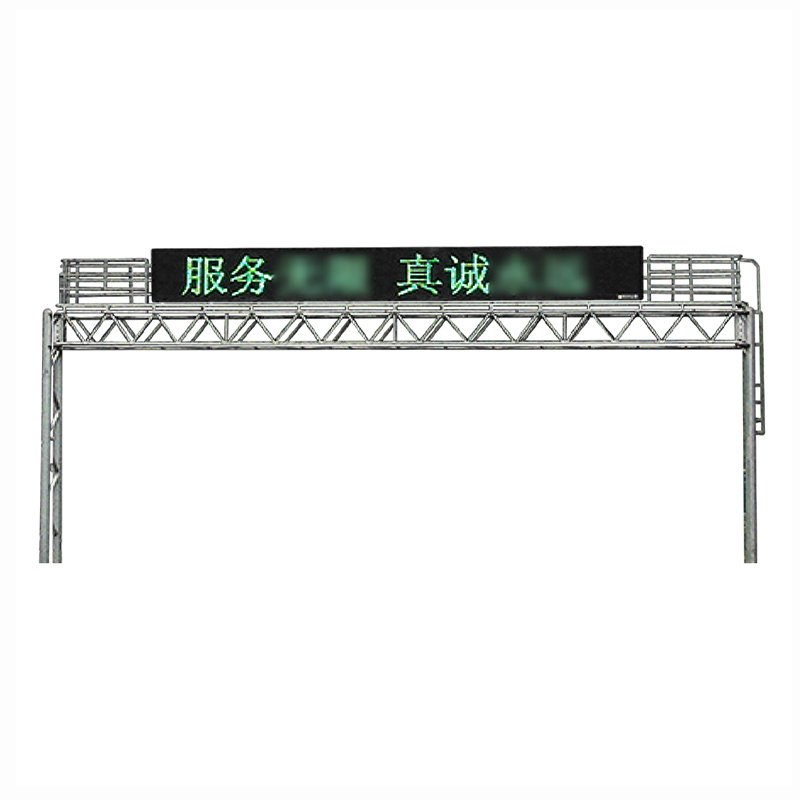

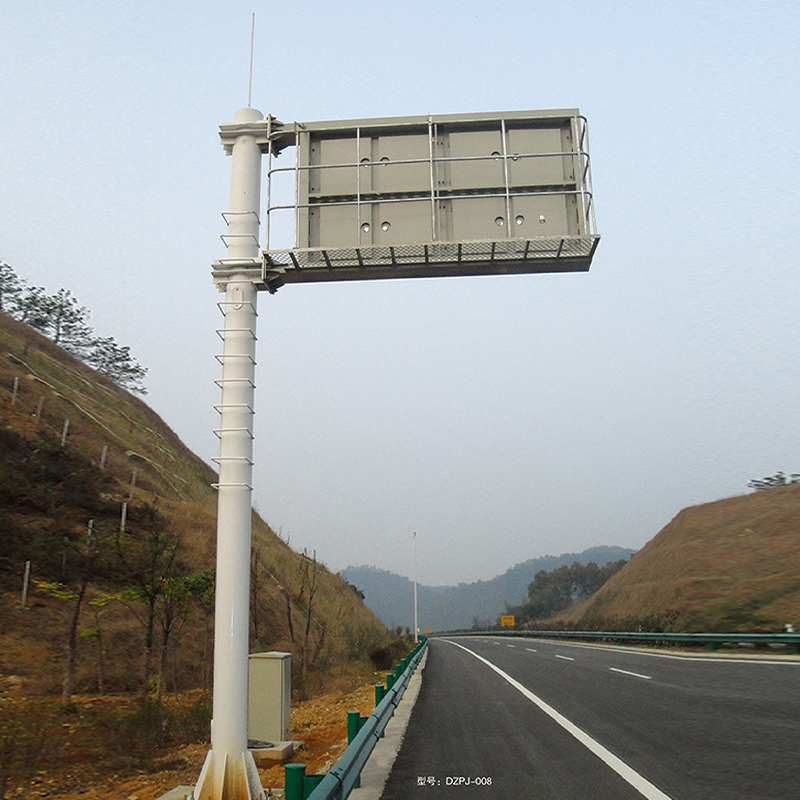

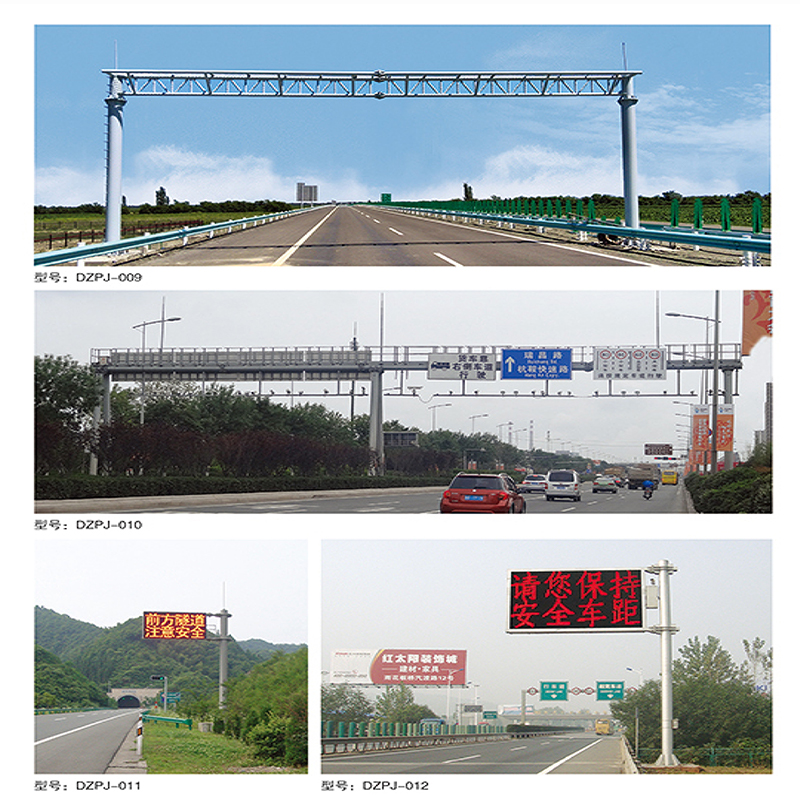

Utilizing an innovative double-layered enclosure structure from the late 20th century, this design uses an air layer for insulation, effectively resisting intense summer sunlight and ensuring the normal operation of internal precision electronic equipment under IP65 protection. Various structural support methods are available, including gantry, cantilever, and column types. The enclosure materials undergo rust removal, rust prevention, and powder coating treatment, ensuring a service life of decades.

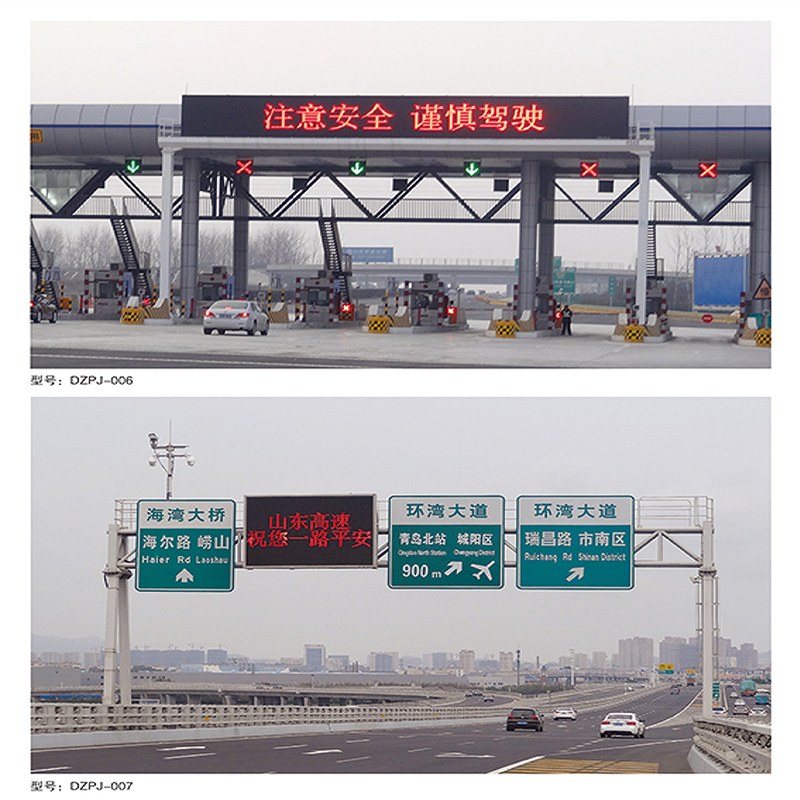

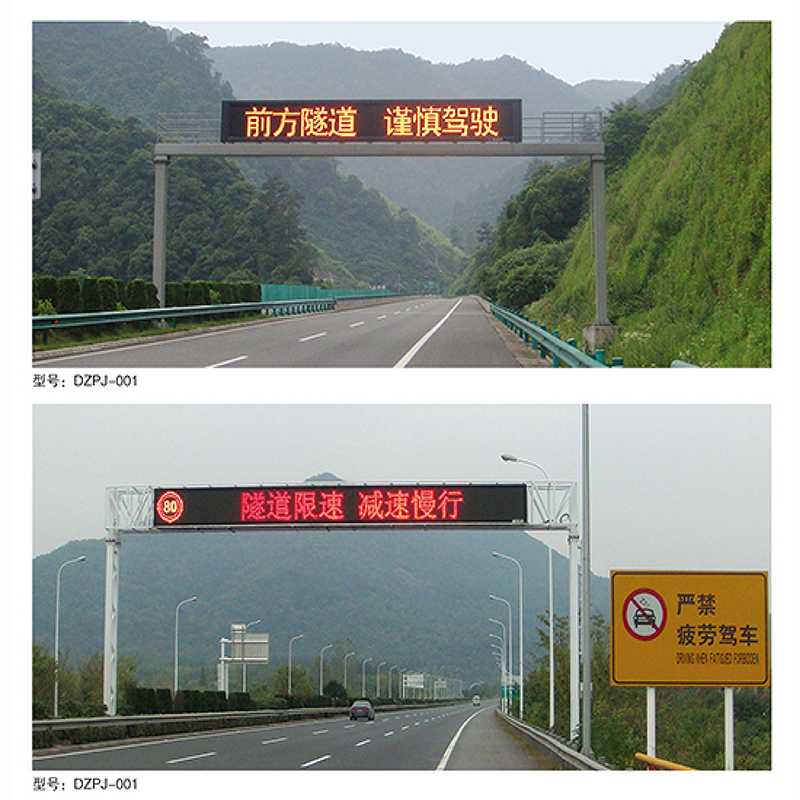

Primarily deployed at highway entrances and exits, large interchanges, long tunnels, and bridge sections to indicate road conditions ahead and incidental events.

·Problem: The excessive span of the gantry causes slight sagging in the middle section.

Solution: Utilize a truss structure or pre-set reverse camber in the design, and increase the inspection frequency of high-strength connectors.

·Problem: Maintenance is difficult in high-speed environments.

Solution: Adopt a modular structure design for front or rear maintenance of the display cabinet, facilitating quick assembly and disassembly by operators.

·Important Notes: Construction involves cross-road operations; a detailed traffic diversion plan must be developed. All connecting bolts must be treated to prevent loosening, and the weld condition must be inspected regularly.

Customizable sizes.
